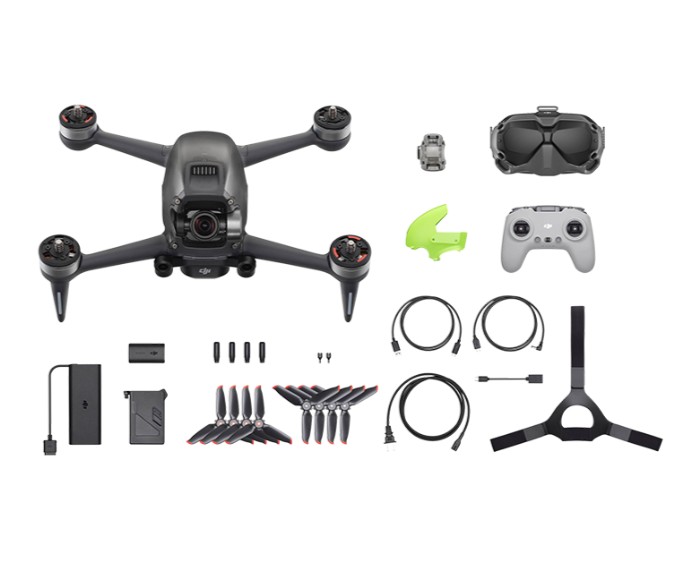

DJI FPV COMBO (EU) FD1W4K

Specification

DJI FPV Goggles

• Weight Approx. 420 g (headband and antennas included)
• Dimensions 202×126×110 mm (antennas included),
• 184×122×110 mm (antennas excluded)
• Screen Size 2-inch × 2
• Screen Resolution (Single Screen) 1440 × 810
• Screen Renew Rate 120 Hz
• Communication Frequency 5.725-5.850 GHz
• Transmitter Power (EIRP) FCC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
• Live View Mode Low Latency Mode (720p/120fps)
• High-Quality Mode (720p/60fps)
• Video Format MP4 (Video format: H.264)
• Supported Video Play Format MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
• Operating Temperature 32° to 104° F (0° to 40° C)
• Power Input 7.4-17.6 V
• FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
• Interpupillary Distance Range 58 -70 mm
• Supported Storage Card microSD cards with storage capacities of up to 128GB.

DJI FPV Air Unit

• Weight Air Unit (Camera included): 45.8 g
• 3.9 g (MMCX elbow antenna each)
• Dimensions Air Unit: 44×37.8×14.4 mm
• Camera: 27.4×21.1×20.1 mm
• Coaxial Cable: 100 mm
• Operating Frequency 5.725-5.850 GHz
• Transmitter Power (EIRP) FCC/SRRC/MIC: <30 dBm;
• CE: <14 dBm
• Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms
• High-Quality Mode (720p/60fps): <40 ms
• Max. Transmission Distance FCC/SRRC: <4 km;
• CE: <0.7 km;
• MIC: <2.5km
• Video Format MP4 (Video format: H.264; Audio format: ACC-LC)
• I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
• Supported Flight Control System The DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
• Operating Temperature Range 32° to 104°F (0° to 40°C)
• Input Power 7.4-17.6 V, about 4-9 W
• Channels 8
• Channels info FCC
•
  • Channel 1: 5660
  • Channel 2: 5695
  • Channel 3: 5735
  • Channel 4: 5770
  • Channel 5: 5805
  • Channel 6: 5878
  • Channel 7: 5914
  • Channel 8: 5839
  • CE/SRRC
  • Channel 1: 5735
  • Channel 2: 5770
  • Channel 3: 5805
  • Channel 8: 5839
  • MIC
  • Channel 1: 5660
  • Channel 2: 5700
  • Channel 8: 5745

DJI FPV Camera

• Sensor 1/3.2” CMOS; Effective Pixels: 4 M
• Lens 2.1 mm, f/2.1
• Shutter Rolling shutter
• ISO 100-25600
• FOV 150°(D); 122°(H); 93°(V)
• Dimension 22.1×21.1×20.1 mm
• Weight 8.2 g
